Module Relais Omron 8 CANAUX SSR 5V
Rated 3.5/5 based on 11 customer reviews
  • All Items

Module Relais Omron 8 CANAUX SSR 5V

Disponibilité: En stock
45.000 55.000
  • commander dans les

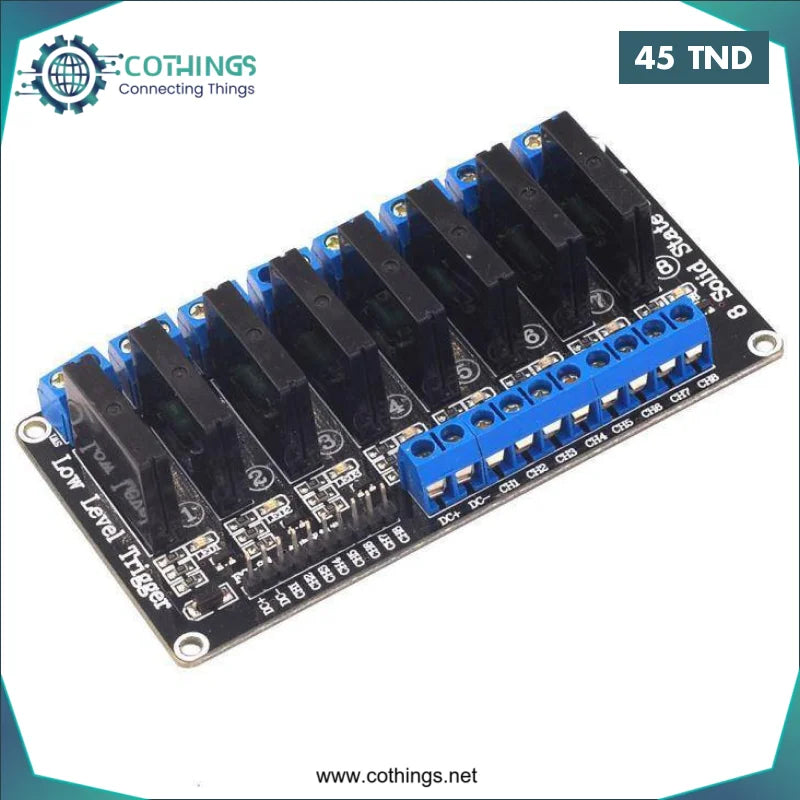

8 Road 5v Low Level Solid State Relay Module with Fuse SSR 250V 2A Fuse

Description:

1, includes a power supply anti-reverse function, then the wrong power supply will not damage the module;

2, with output 240V / 2A resettable fuse to protect the security module;

3, genuine quality relay module, maximum load: AC 240V / 2A;

4, block anti-interference ability, stable performance; trigger current is only 1mA;

5, the module voltage 5V, 12V, 24V to choose from; another one-way, 2-way, 4-way, 8-way modules to choose from;

6, high-level control module; built-in current limiting resistor modules can be directly used to control the positive power supply, you can also use the microcontroller I / O port control;

7, with power indicator (red) and each channel relay status indicator (blue)

8, module size: 97mm * 60mm * 25mm (L * W * H)

9, has four 3mm fixing bolt holes for easy installation

10, module blue high current terminal blocks

11, module weight 75g


Module Interface:

End module control: 10-wire interface, all the terminals are the interface, user-friendly connection

1, DC +: positive external DC power supply (with 5V, 12V and 24V modules to choose from)

2, DC-: external DC power supply negative

3, X1-X8: Relay control interface, a high level relay


Relay output: 16 line interface, all the terminals are the interface, user-friendly connection

1, NO1 - NO8: normally open relay interfaces, relay before hanging, pull back with CM

2, CM1 - CM8: Relay Common Interface
