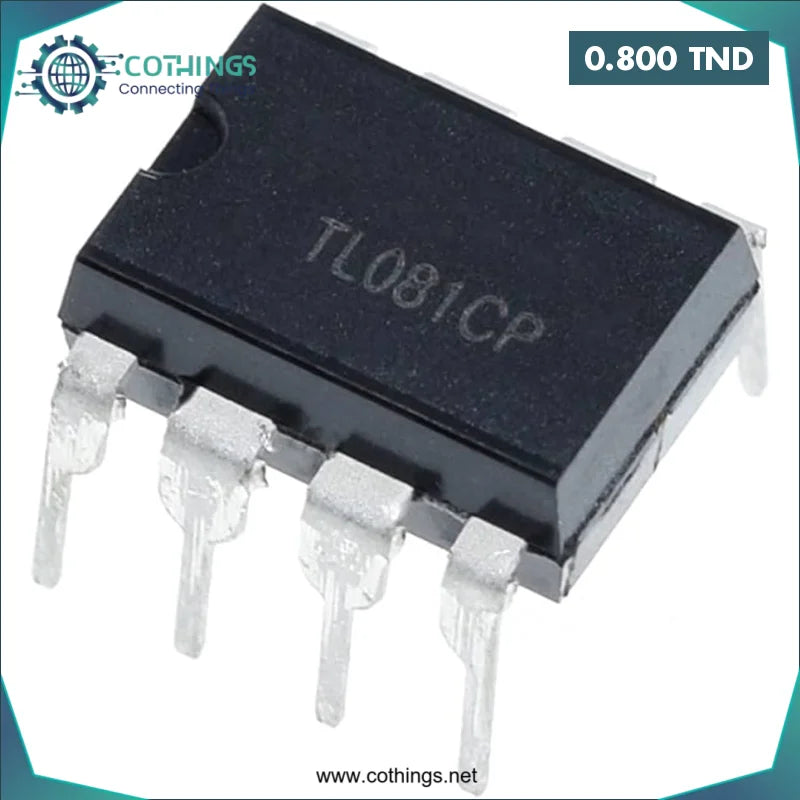

Amplificateurs opérationnels TL081C DIP8
Amplificateurs opérationnels TL081C DIP8
Disponibilité:
En stock
- Produit SKU : CH864
0.800
- commander dans les
|
Physical |
|
| Case/Package | PDIP |
| Mount | Through Hole |
| Number of Pins | 8 |
|
Technical |
|
| Bandwidth | 4 MHz |
| Common Mode Rejection Ratio | 70 dB |
| Dual Supply Voltage | 5 V |
| Gain Bandwidth Product | 3 MHz |
| Input Bias Current | 400 pA |
| Input Offset Voltage (Vos) | 15 mV |
| Max Dual Supply Voltage | 18 V |
| Max I/O Voltage | 15 mV |
| Max Operating Temperature | 70 °C |
| Max Supply Current | 2.8 mA |
| Min Dual Supply Voltage | 3.5 V |
| Min Operating Temperature | 0 °C |
| Nominal Gain Bandwidth Product | 3 MHz |
| Nominal Supply Current | 2.8 mA |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.4 mA |
| Operating Supply Voltage | 18 V |
| Rise Time | 50 ns |
| Slew Rate | 13 V/µs |
| Voltage Gain | 106.02 dB |
|
Dimensions |
|
| Height | 5.08 mm |
| Length | 9.81 mm |
| Thickness | 3.9 mm |
| Width | 6.35 mm |
|
Compliance |
|
| Lead Free | Lead Free |
| REACH SVHC | No SVHC |
| Radiation Hardening | No |
| RoHS | Compliant |
|
